| Place of Origin: | China |
|---|---|
| Certification: | SGS |
| Minimum Order Quantity: | 1 square meter |
| Price: | Negotiable |
| Packaging Details: | In roll, water proof paper in side and out side with woven bag;wooden case;pallet. The package able to according to customers requirement.. |
| Delivery Time: | According to the Quantity Ordered |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000sqm/day |
| Material: | Stainless Steel 201,304,316 | Wire Diameter: | 3mm |
|---|---|---|---|
| Hole Size: | 5*5cm | Width: | 1m,1.2m,1.5m,1.8m,2m |
| Length: | 30m | Type: | Welded Mesh |
| Application: | Construction Wire Mesh | Sample: | Free |
| Highlight: | SS304 Stainless Steel Welded Wire Mesh,5*5cm Stainless Steel Welded Wire Mesh,5*5cm construction wire mesh |
||

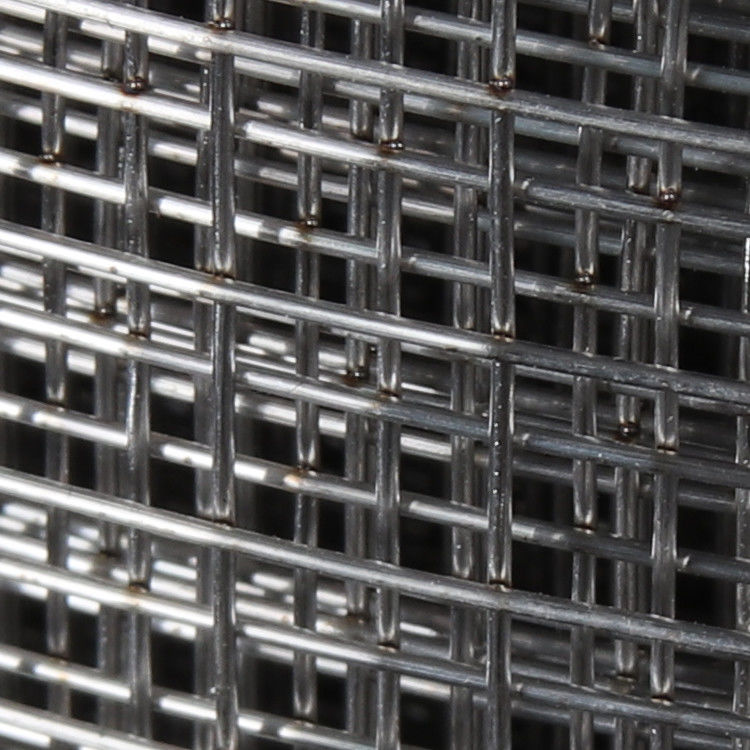

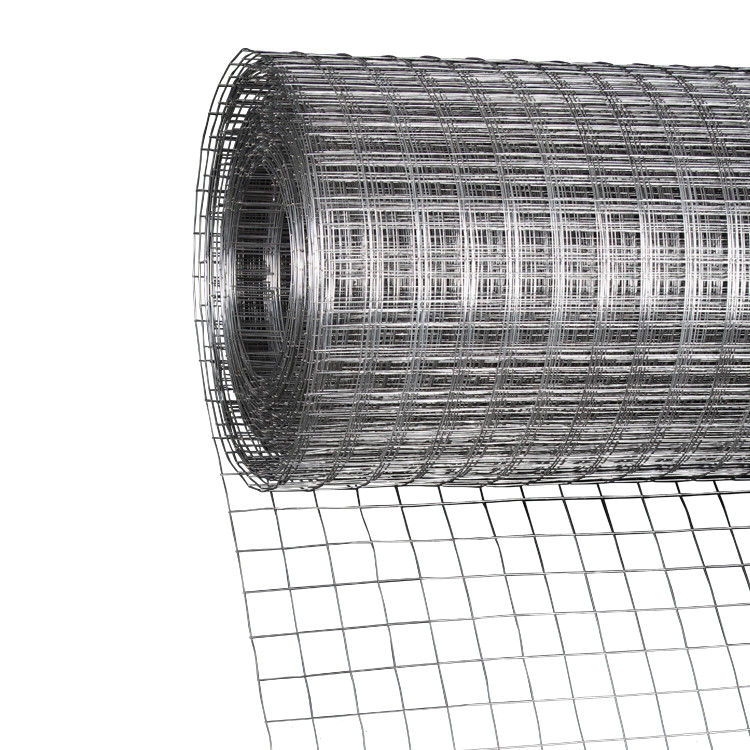

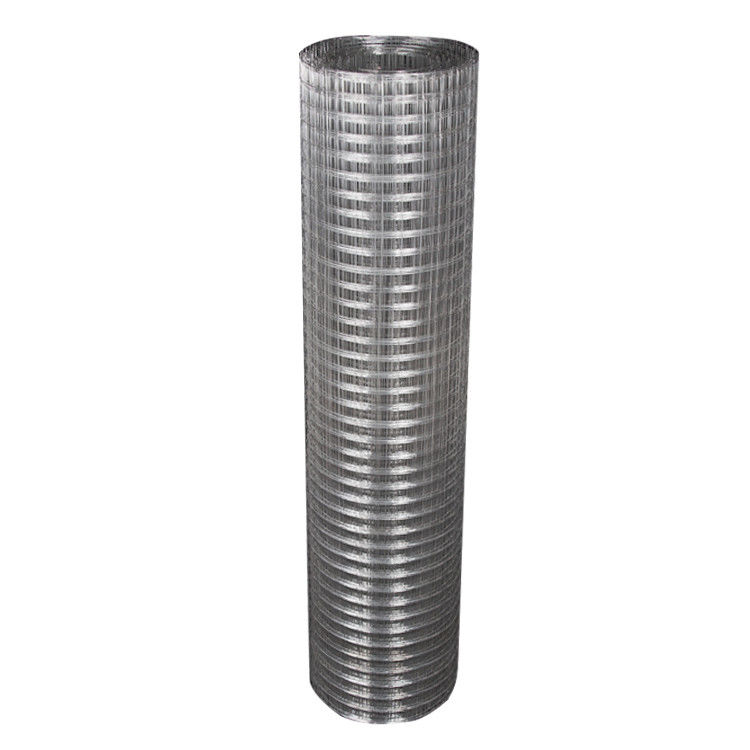

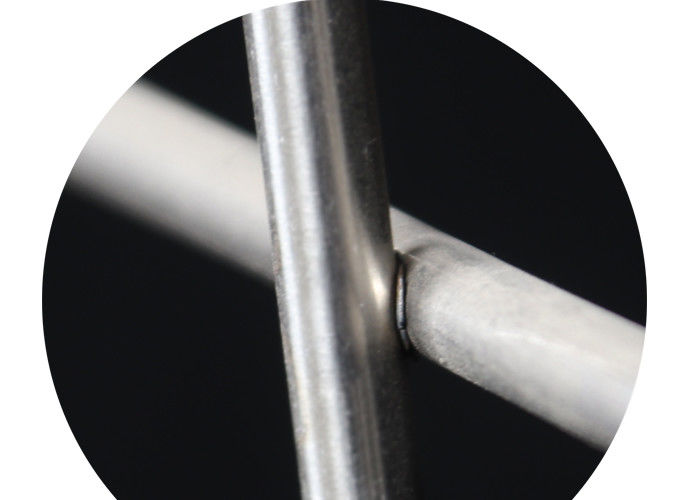

SS304 SS316 stainless steel welded wire mesh construction mesh
Stainless steel welded wire mesh is strong and long lasting. By its very nature stainless steel wire needs no additional finish, such as galvanizing or PVC, to protect it. The wire itself is extremely resistant to rust, corrosion and harsh chemicals.
Raw Materials:
|
WIRE DIAMETER
|
hole size
|
Width and Length
|
this is just some of the size for reference,
we can make the product all based on customer request, also we can produce based on drawing for special shape and usage mesh panel
|
|
1.65mm
|
15x15mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
1.9mm
|
75x50mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
2.0mm
|
50x100mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
2.3mm
|
50x150mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
2.76mm
|
50x100mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
2.76mm
|
50x150mm
|
1.0/1.2/1.5/1.8/2.0m
|
|
|
1.24mm
|
25x25mm
|
1.0/1.2/1.5/1.8/2.0m
|
| Stainless Steel Welded Wire Mesh Roll | ||
| Aperture Size | Wire Gauge | Width (Feet) |
| 1/4”x1/4” | BWG23 | 2-7 |
| 3/8”x3/8” | BWG19,20,21,22 | 2-7 |
| 1/2”x1/2” | BWG16,17,18,19,20,21,22,23,24 | 2-7 |
| 3/4”x3/4” | BWG16,17,18,19,20,21,22 | 2-7 |
| 1”x1/2” | BWG16,17,18,19 | 2-7 |
| 1”x1” | BWG14,15,16,17,18,19,20,21 | 2-7 |
| 1”x2” | BWG14,15,16 | 2-7 |
| 2”x2” | BWG14,15,16,18 | 2-7 |
| 2”x2” | BWG10,11,12 | 2-8.2 |
| Stainless steel welded wire mesh panel | ||
| Aperture | Wire Gauge | Width(Feet) |
| 2”x3” | BWG8,10,12 | 2-8.2 |
| 2”x4” | BWG6,8,11,12 | 2-8.2 |
| 3”x3” | BWG6,8,10,11 | 2-8.2 |
| 4”x4” | BWG3,4,5,6,8,9,10 | 2-8.2 |
| 4”x6” | BWG3,4,5,6,8,9,10 | 2-8.2 |
| 6”x6” | BWG2,4,6,7,8,9 | 2-8.2 |
